Prometheus

Config

调试

--web.enable-lifecycle

http://192.168.3.12:9090/-/healthy

curl -X POST http://localhost:9090/-/reload

Rules

Note

Recording rule 只是生成指标，方便计算或绘图

Alerting rule 使用 recording rule 的指标，触发告警

• 规则配置

rule_files:
  - xxx.yml

• xxx.yml

groups:
- name: blackbox_service_alerts
  interval: 30s
  rules:
  - alert: ServiceDown
    expr: probe_success{instance="192.168.3.51:8000"} == 0
    for: 1m
    labels:
      severity: critical
    annotations:
      summary: "服务 192.168.3.51:8000 离线 服务监控"
      description: "服务心跳连续失败超过 1 分钟"

• 规则校验

promtool check rules /path/to/example.rules.yml

Recording Rules

Alert Rules

操作符	含义	示例
=	精确匹配	instance = "localhost:9100"
=~	正则表达式匹配	instance =~ "localhost:.*"

增加标签

scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["localhost:9091"]
        labels:
          app: "prometheus"
  - job_name: node_exporter
    static_configs:
      - targets: ["localhost:9100"]
        labels:
          project: "公司内网服务器"

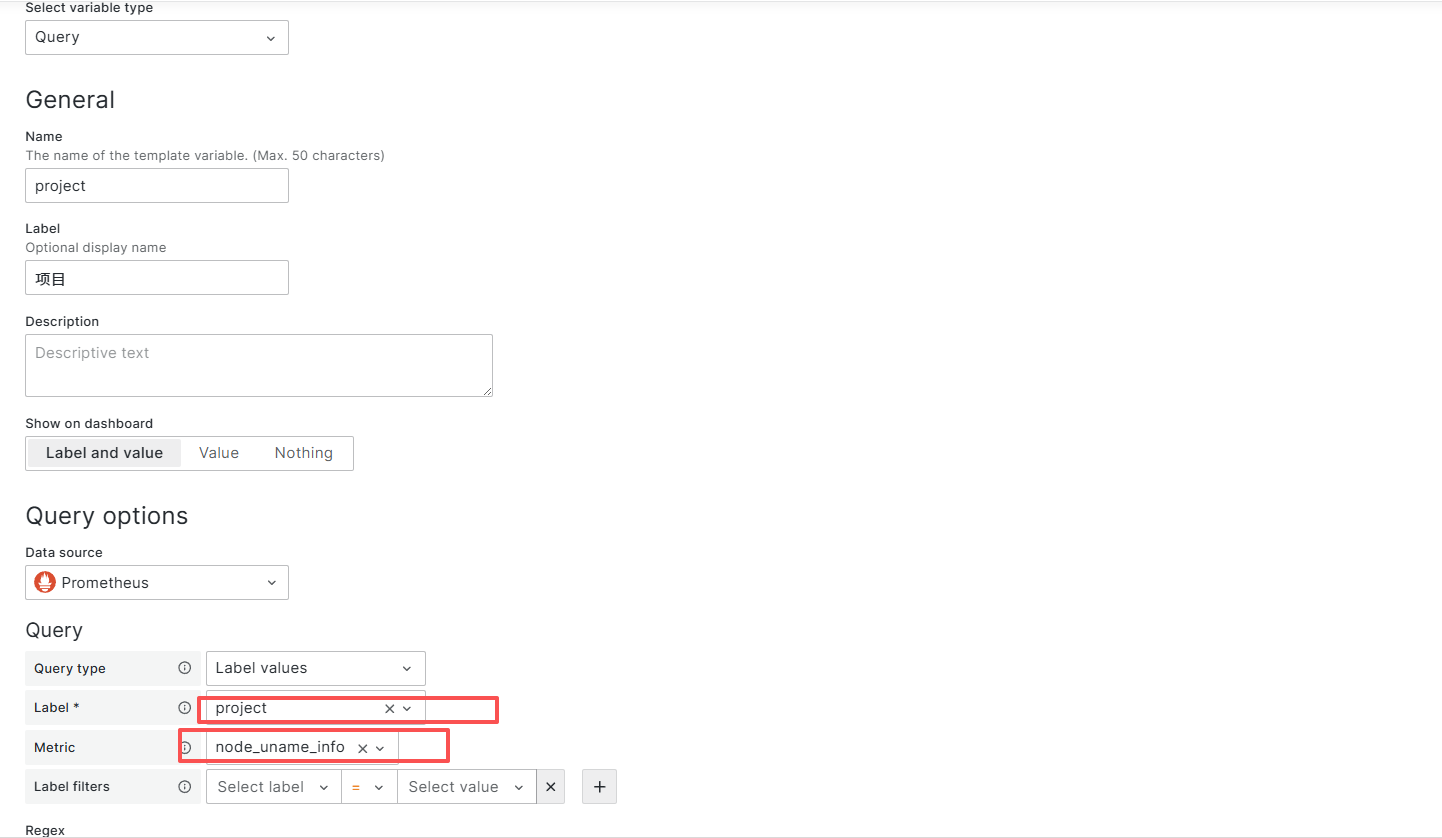

• grafana 定义变量

api

import requests
import json

# Prometheus API 地址
PROM_URL = "http://103.118.40.237:30090/api/v1/query"



def get_prometheus_metric(query):
    try:
        response = requests.get(PROM_URL, params={'query': query}, timeout=10)
        response.raise_for_status()
        data = response.json()

        if data['status'] != 'success' or not data['data']['result']:
            print("没有获取到数据")
            return None

        # 提取指标值
        value = data['data']['result'][0]['value']
        timestamp = value[0]
        metric_value = round(int(value[1]) / 1024 /1024 / 1024, 2)

        print(f"时间戳: {timestamp}, 指标值: {metric_value}")
        return metric_value

    except requests.RequestException as e:
        print(f"请求 Prometheus 失败: {e}")
        return None


if __name__ == "__main__":
    # 查询表达式
    query = 'increase(node_network_transmit_bytes_total{device="ens3",instance="cdnone"}[360d])'
    r = get_prometheus_metric(query)
    query = 'node_network_transmit_bytes_total{device="ens3",instance="cdntwo"}'
    r2 = get_prometheus_metric(query)
    msg = f"\U0001F4BB服务器: cdnone  \U0001F6DC当前出网流量总计： {r} G \n\U0001F4BB服务器: cdntwo  \U0001F6DC当前出网流量总计： {r2} G"

Systemd

prometheus.service

[Unit]
Description=Prometheus
Wants=network-online.target
After=network-online.target

[Service]
User=prometheus
Group=prometheus
Type=simple
ExecStart=/opt/prometheus-3.6.0-rc.0.linux-amd64/prometheus --config.file=/opt/prometheus-3.6.0-rc.0.linux-amd64/prometheus.yml --storage.tsdb.path=/opt/prometheus-3.6.0-rc.0.linux-amd64/data/ --web.enable-remote-write-receiver

[Install]
WantedBy=default.target

node-exporter.service

[Unit]
Description=Node Exporter
Wants=network-online.target
After=network-online.target

[Service]
User=node_exporter
Group=node_exporter
Type=simple
ExecStart=/usr/local/bin/node_exporter

[Install]
WantedBy=default.target

postgresql-exporter.service

[Unit]
Description=Prometheus PostgreSQL Exporter
After=network.target postgresql.service

[Service]
Type=simple
User=postgres_exporter
Group=postgres_exporter

# 转义 % 字符
Environment="DATA_SOURCE_NAME=postgresql://postgres:Pgsql%%402024@172.31.24.131:5432/postgres?sslmode=disable"

ExecStart=/data/soft/postgres_exporter-0.18.1.linux-amd64/postgres_exporter \
  --extend.query-path=/data/soft/postgres_exporter-0.18.1.linux-amd64/queries.yaml

Restart=always
RestartSec=5

[Install]
WantedBy=multi-user.target

docker

prometheus

version: '3.8'

services:
  prometheus:
    image: prom/prometheus:latest
    container_name: prometheus
    restart: unless-stopped
    # 使用宿主机网络，方便直接访问宿主机上的 exporter (9100, 9256 等)
    # 这样 targets 就可以直接写 localhost:端口
    network_mode: "host"

    volumes:
      # 挂载配置文件
      - ./prometheus/prometheus.yml:/etc/prometheus/prometheus.yml:ro
      # 挂载数据目录 (持久化存储监控数据，防止重启丢失)
      - prometheus_data:/prometheus

    command:
      - '--config.file=/etc/prometheus/prometheus.yml'
      - '--storage.tsdb.path=/prometheus'
      - '--web.console.libraries=/etc/prometheus/console_libraries'
      - '--web.console.templates=/etc/prometheus/consoles'
      - '--storage.tsdb.retention.time=15d' # 数据保留15天，可根据磁盘调整
      - '--web.enable-lifecycle' # 允许通过 API 重载配置

volumes:
  prometheus_data:

prmetheus&node_exporter&process_exporter

在同一个 Docker 网络中，直接使用服务名作为地址

prometheus/prometheus.yml

global:
  scrape_interval: 15s
  evaluation_interval: 15s

scrape_configs:
  # 1. 监控 Prometheus 自身
  - job_name: 'prometheus'
    static_configs:
      - targets: ['localhost:9090']

  # 2. 监控 Node Exporter (宿主机硬件指标)
  - job_name: 'node-exporter'
    static_configs:
      - targets: ['node-exporter:9100']

  # 3. 监控 Process Exporter (各语言进程指标)
  - job_name: 'process-exporter'
    static_configs:
      - targets: ['process-exporter:9256']

version: '3.8'

services:
  # ==========================
  # 1. Prometheus (核心数据库)
  # ==========================
  prometheus:
    image: prom/prometheus:latest
    container_name: prometheus
    restart: unless-stopped
    ports:
      - "9090:9090"
    volumes:
      - ./prometheus/prometheus.yml:/etc/prometheus/prometheus.yml:ro
      - prometheus_data:/prometheus
    command:
      - '--config.file=/etc/prometheus/prometheus.yml'
      - '--storage.tsdb.path=/prometheus'
      - '--web.console.libraries=/etc/prometheus/console_libraries'
      - '--web.console.templates=/etc/prometheus/consoles'
      - '--storage.tsdb.retention.time=15d'
      - '--web.enable-lifecycle'
    depends_on:
      - node-exporter
      - process-exporter

  # ==========================
  # 2. Node Exporter (硬件监控)
  # ==========================
  node-exporter:
    image: quay.io/prometheus/node-exporter:latest
    container_name: node-exporter
    restart: unless-stopped
    # 不需要暴露端口给外部，Prometheus 内部访问即可
    # 如果需要外部访问 Grafana，可以解开 ports
    # ports:
    #   - "9100:9100"
    volumes:
      - /proc:/host/proc:ro
      - /sys:/host/sys:ro
      - /:/rootfs:ro
    command:
      - '--path.procfs=/host/proc'
      - '--path.sysfs=/host/sys'
      - '--collector.filesystem.mount-points-exclude=^/(sys|proc|dev|host|etc)($$|/)'

  # ==========================
  # 3. Process Exporter (进程监控)
  # ==========================
  process-exporter:
    image: quay.io/ncabatoff/process-exporter:latest
    container_name: process-exporter
    restart: unless-stopped
    privileged: true  # 必须特权模式以读取所有进程信息
    # ports:
    #   - "9256:9256"
    volumes:
      - /proc:/host/proc:ro
      - ./process-exporter:/config:ro
    command:
      - "--procfs=/host/proc"
      - "--config.path=/config/filename.yml"

# 数据持久化卷
volumes:
  prometheus_data:

process-exporter/filename.yml

process_names:
  # --- 常用语言监控规则 ---

  # Java
  - name: "{{.Comm}}"
    cmdline:
      - '.+/java.*'

  # Python (匹配 python, python3, python3.8 等)
  - name: "{{.Comm}}"
    cmdline:
      - '.+/python[0-9.]*.*'
      - 'python.*'

  # Node.js
  - name: "{{.Comm}}"
    cmdline:
      - '.+/node.*'

  # Go (通常编译为独立二进制，这里示例匹配包含 'go' 或特定应用名的进程)
  # 请根据你的实际二进制文件名修改正则，例如 'my-app'
  - name: "{{.Comm}}"
    cmdline:
      - '.*my-go-app.*'
      - '.+/go-build.*' # 临时匹配 go build 产生的进程

  # --- 通用规则 (慎用，可能会产生大量指标) ---
  # 如果上面的规则没匹配到，但你想监控所有其他用户进程，取消下面注释：
  # - name: "{{.Comm}}"
  #   cmdline:
  #     - '.+'
