Grafana

https://grafana.com/grafana/download

https://gitee.com/derek2468/grafana-dashboards

服务启动

nohup bin/grafana-server &


默认用户/密码： admin/admin

案例

with t as (
select
table_name, concat(operate_type,'_', operate_status) as t,
count(1) as num
from schooletl_operate_log
group by table_name, operate_type, operate_status
)
select
table_name,
max(case when t = 'append_finish' then num else 0 end) as 新增成功,
max(case when t = 'append_waiting' then num else 0 end) as 新增等待,
max(case when t = 'update_finish' then num else 0 end) as 更新成功
from t
group by table_name

数据下钻

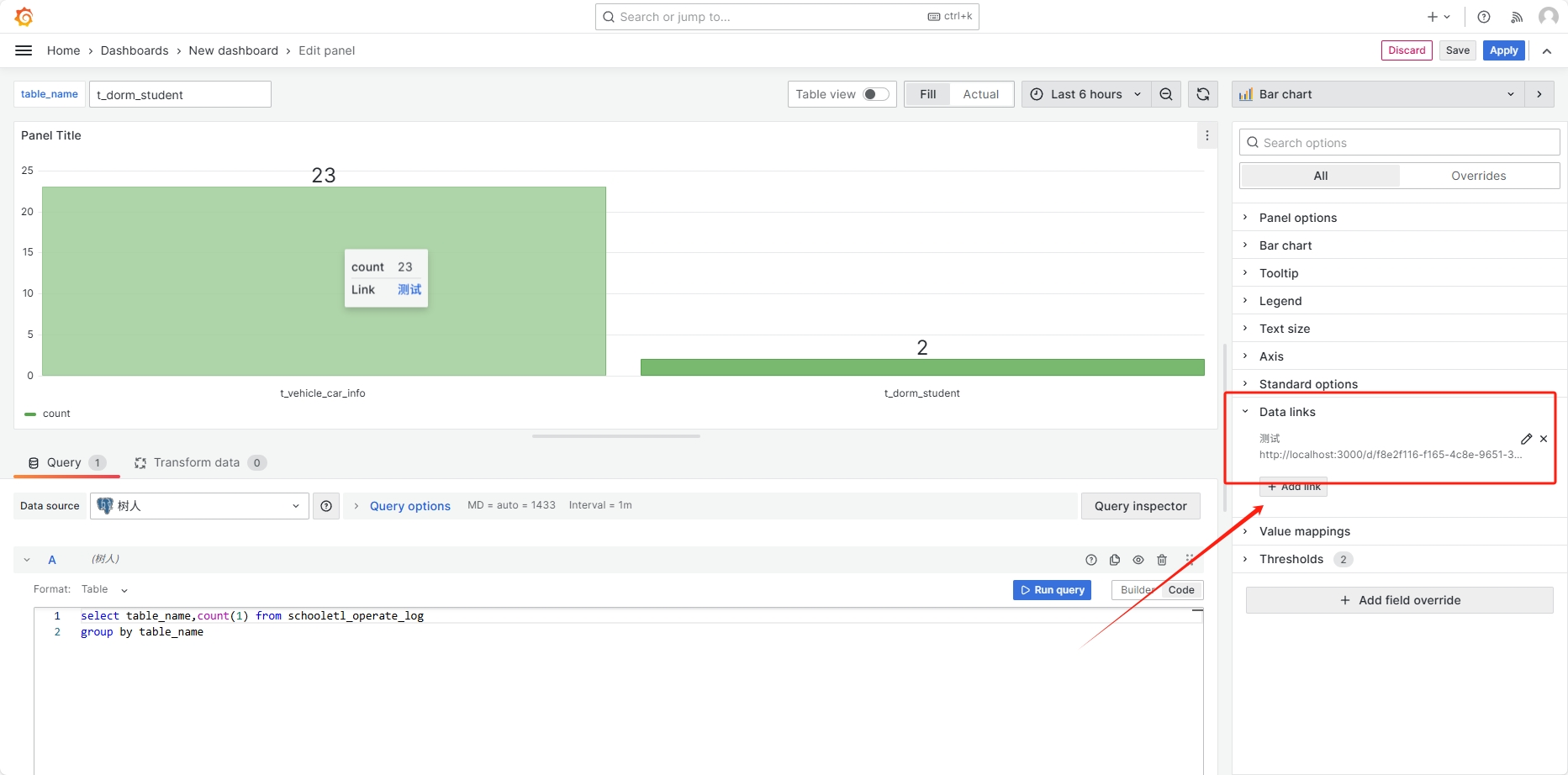

• 配置跳转链接

http://localhost:3000/d/f8e2f116-f165-4c8e-9651-358a8df1c733/new-dashboard?orgId=1&var-table_name=${__data.fields.table_name}

仪表盘地址：
http://localhost:3000/d/f8e2f116-f165-4c8e-9651-358a8df1c733/new-dashboard?orgId=1

变量名称(定义变量名前加var-)：var-table_name
传入的参数(输入$可进行选择)：$

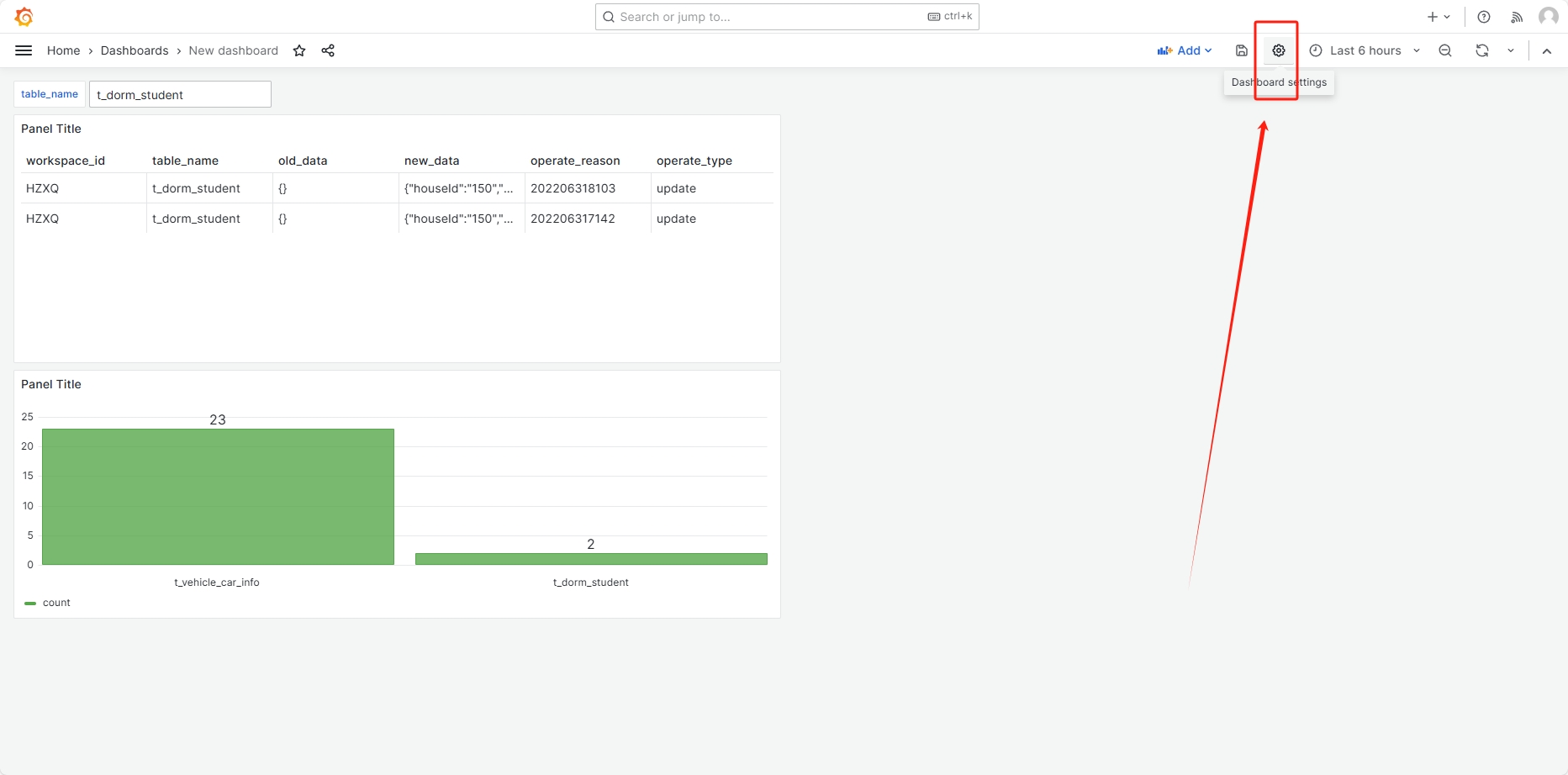

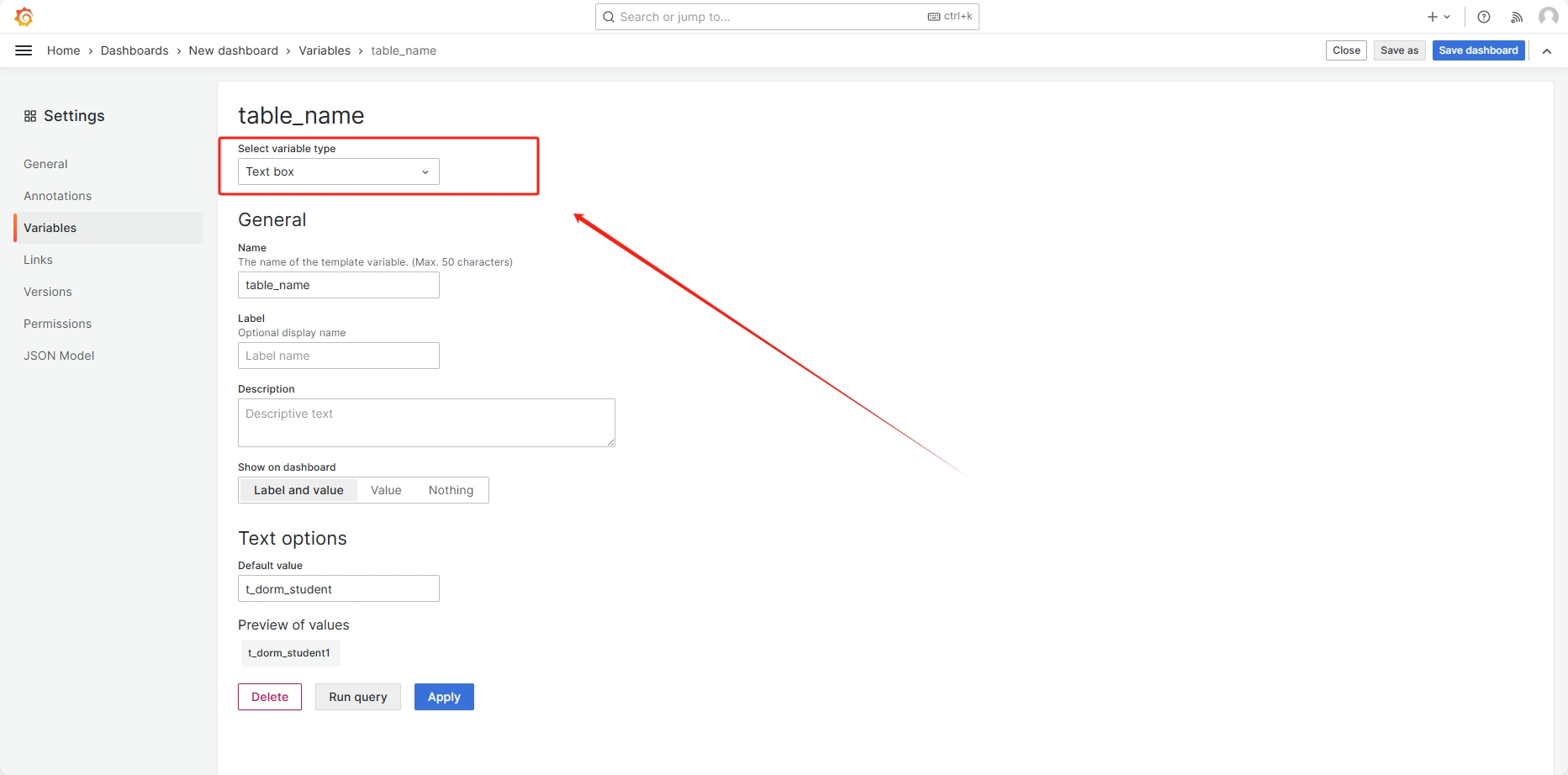

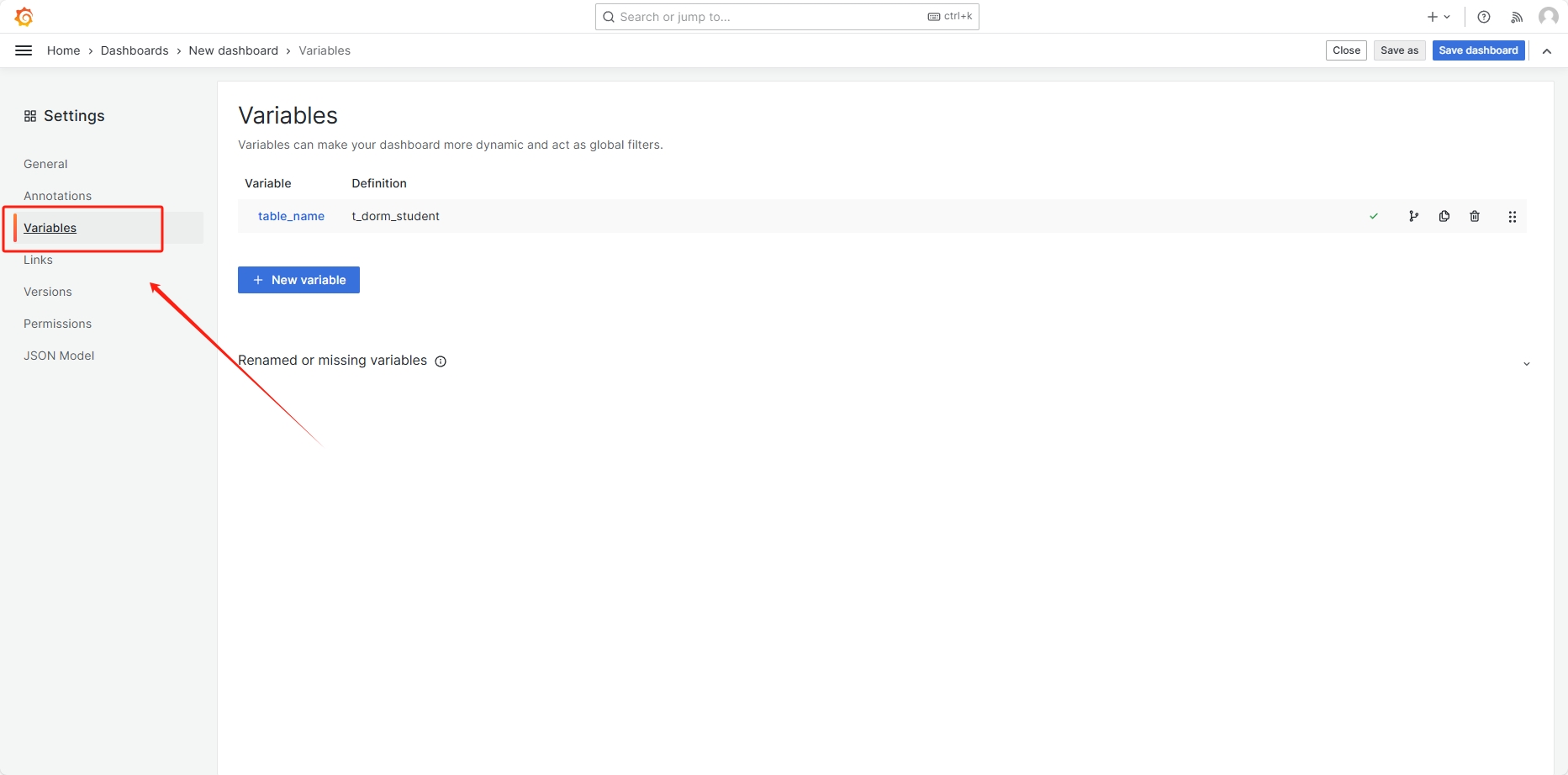

• 配置变量

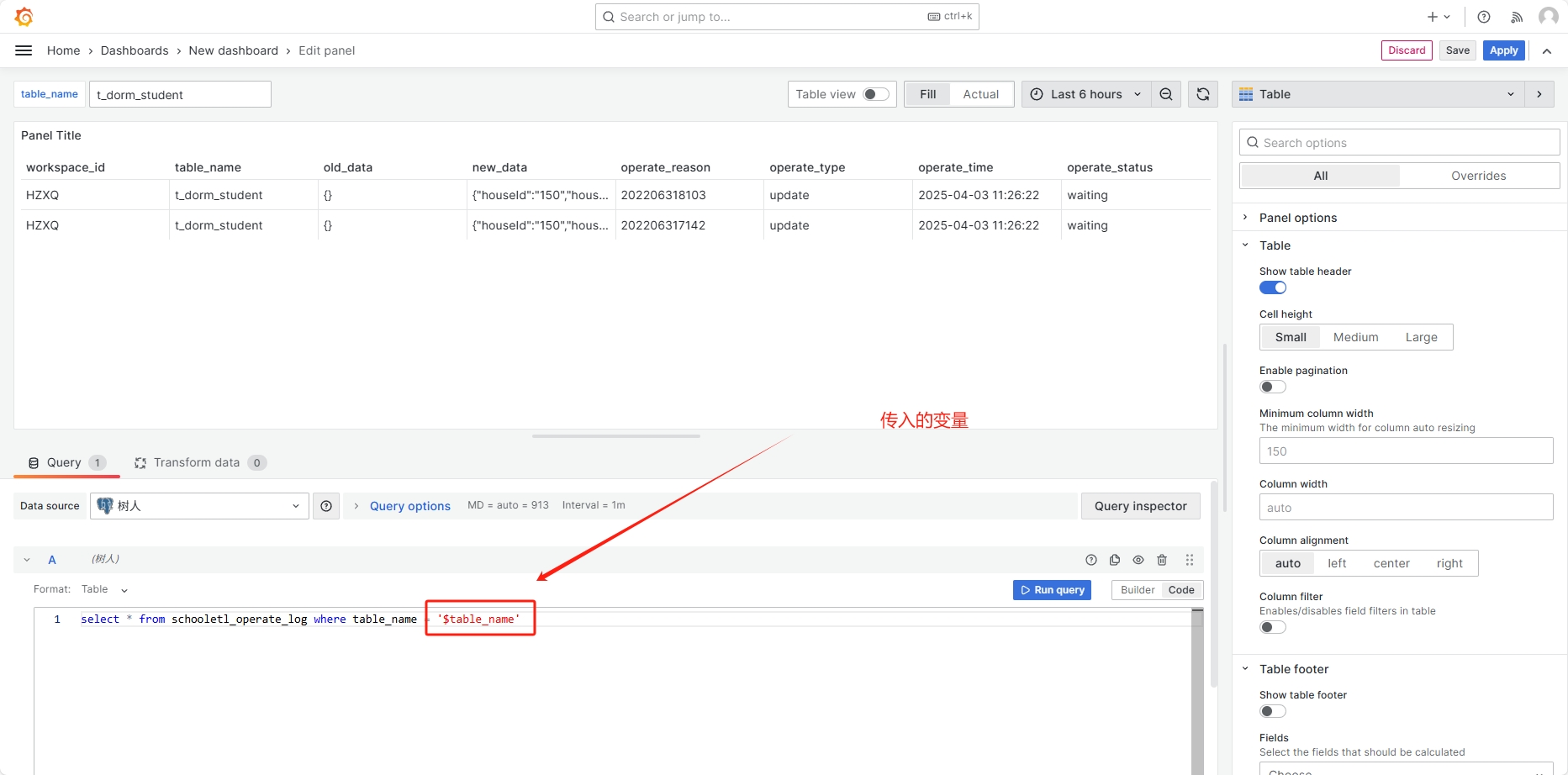

• 配置明细


插件

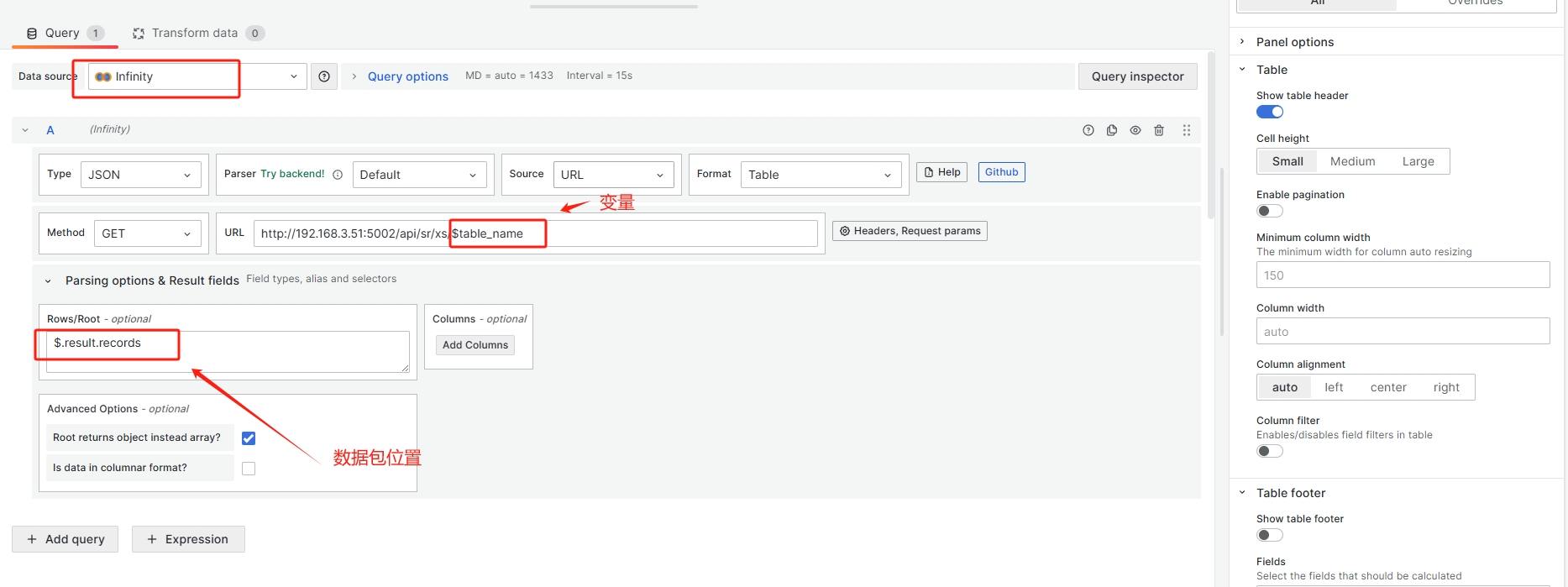

api数据源

sudo bin/grafana cli plugins install yesoreyeram-infinity-datasource

• 解析数据包
